THE PRODUCT

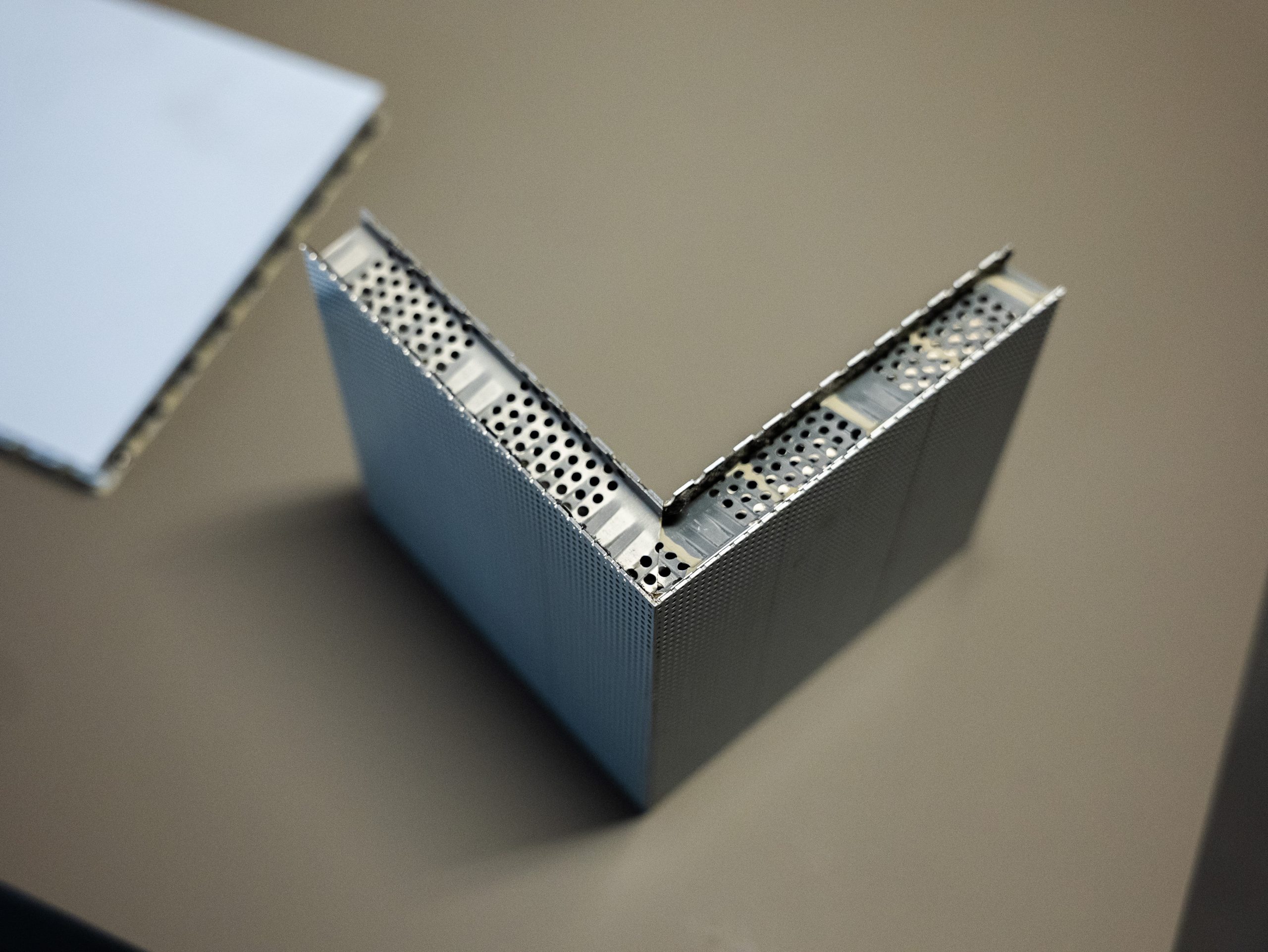

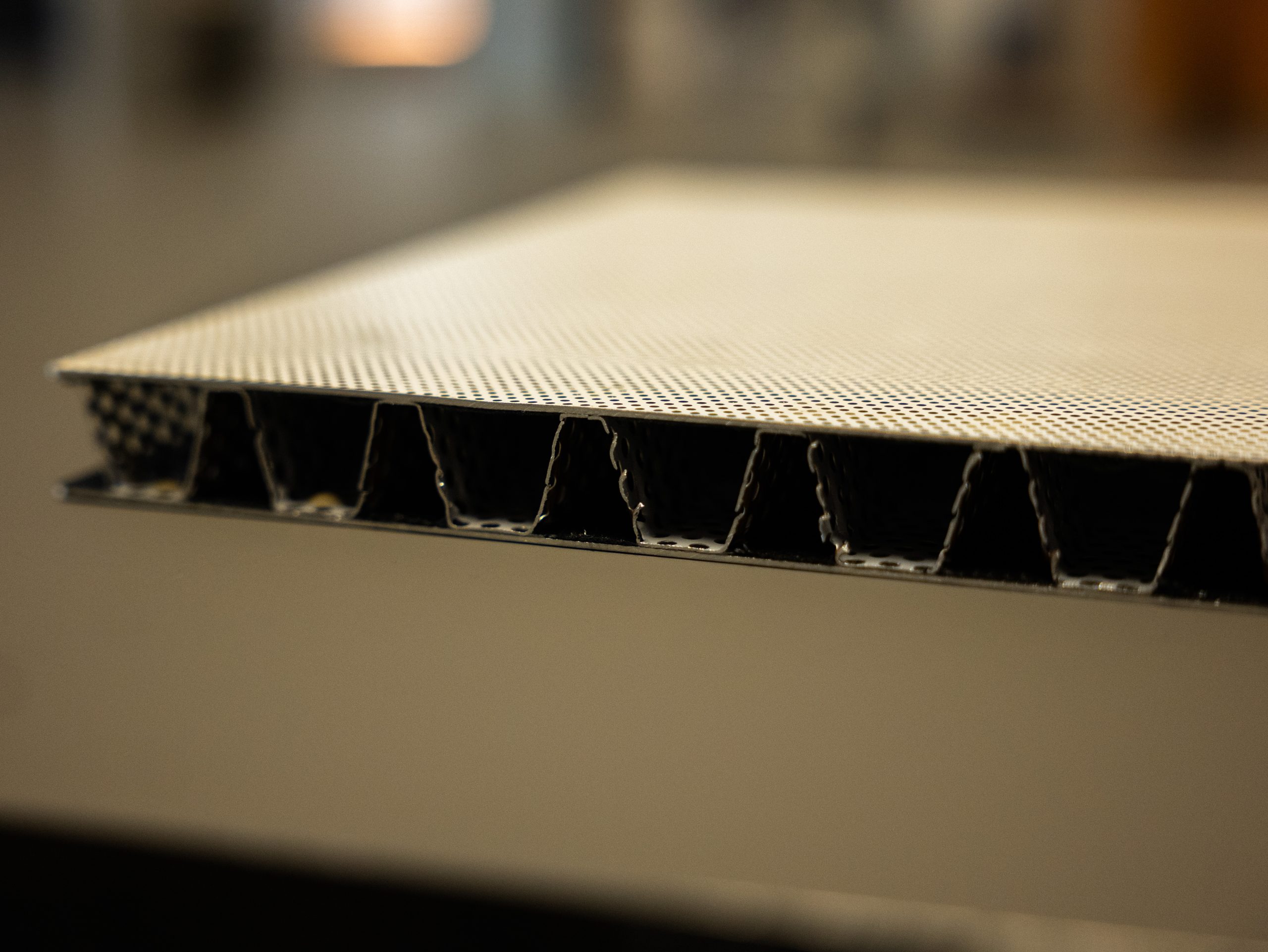

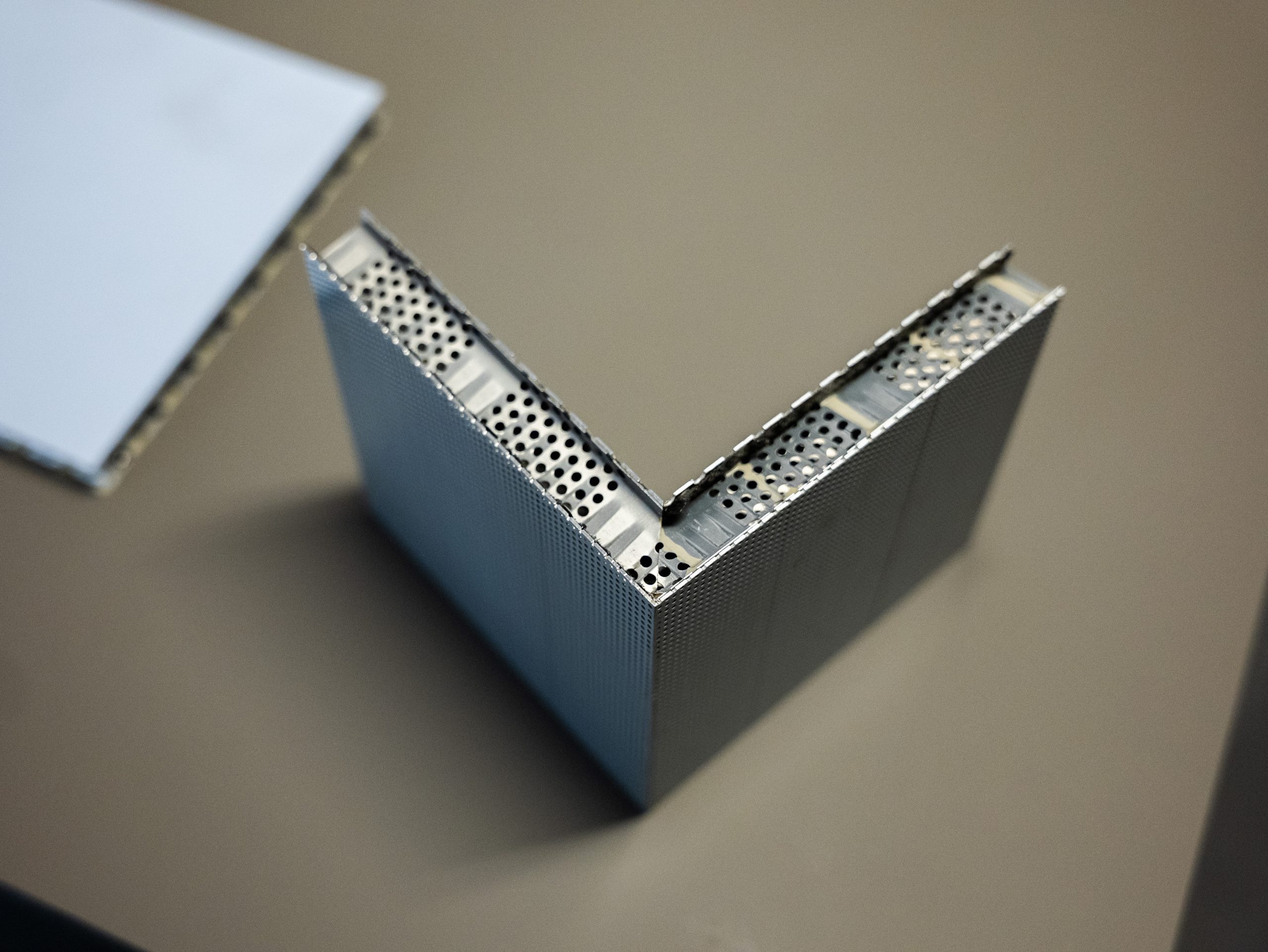

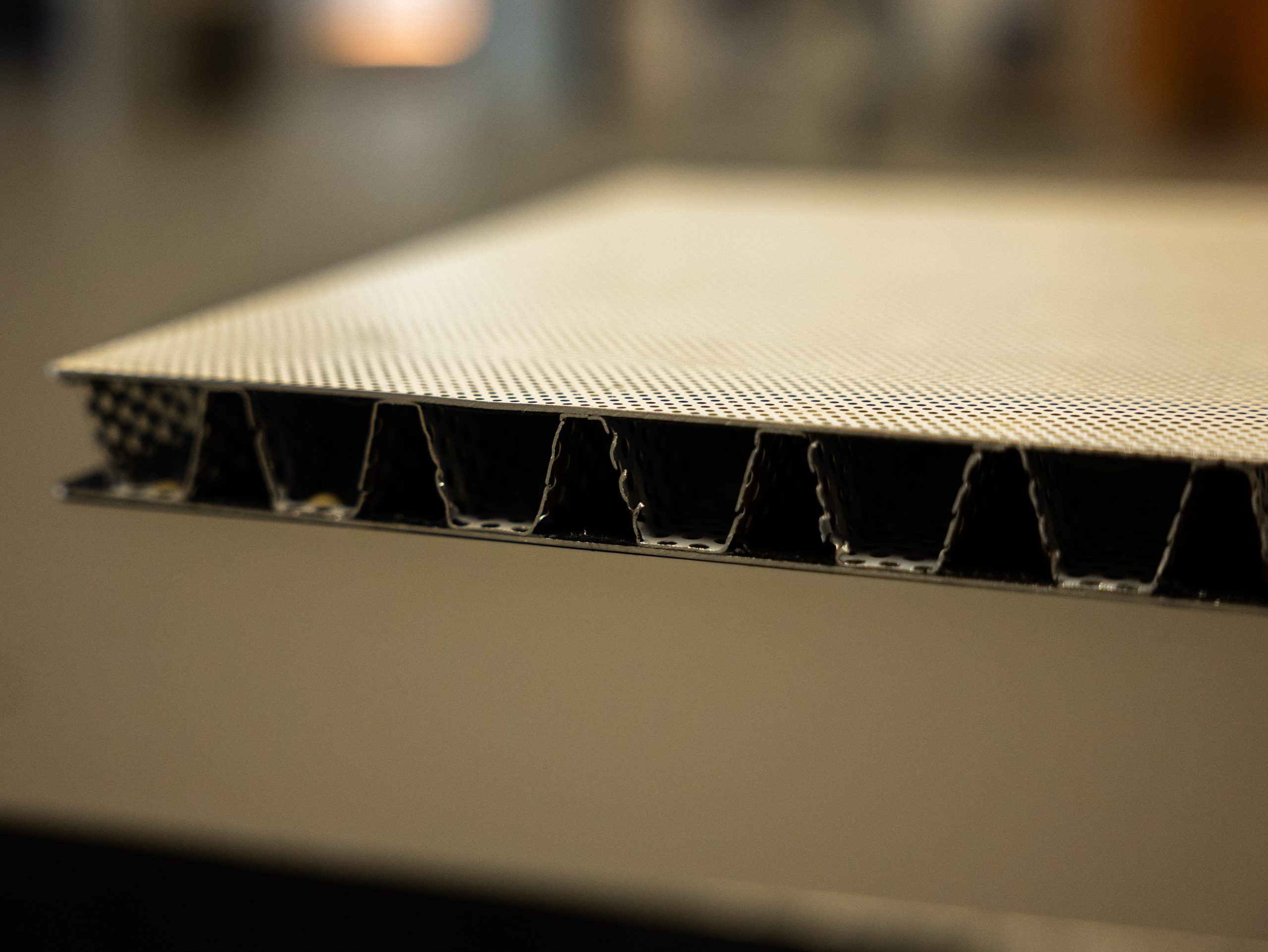

Wallflex® SOUND ABSORBING panel is a very light, strong and resistant structural panel, composed by two external aluminum skins and an internal corrugated aluminum core. One skin is characterized by a suitable and tested perforation for the absorption of noises and sounds; a black glass-veil is also applied under the perforated skin.

These holes, combined with the cavity of the internal corrugation, allow for excellent sound absorption results.

For more informations about the panel and the sound and acustic tests please do not hesitate to contact us.

TECHNICAL FEATURES

• Standard thicknesses available: 4 - 6 - 8 - 10 - 15 - 18 - 20 - 25 mm
• Corrugated thickness of the internal core: 0.3 mm
• External hides thickness: from 0.3 mm to 1 mm
• Standard dimensions: width: 1250 – 1500 mm – Minimum length 2000 mm up to a maximum of 5000 mm
• Non-standard thicknesses and dimensions could be produced on request
• Possibility to choose different finishes
• Panel could be worked using tools similar to those for woodworking



Discover all the APPLICATIONS of Wallflex® panel.
