WALLFLEX® Honeycomb

WALLFLEX® Honeycomb

THE PRODUCT

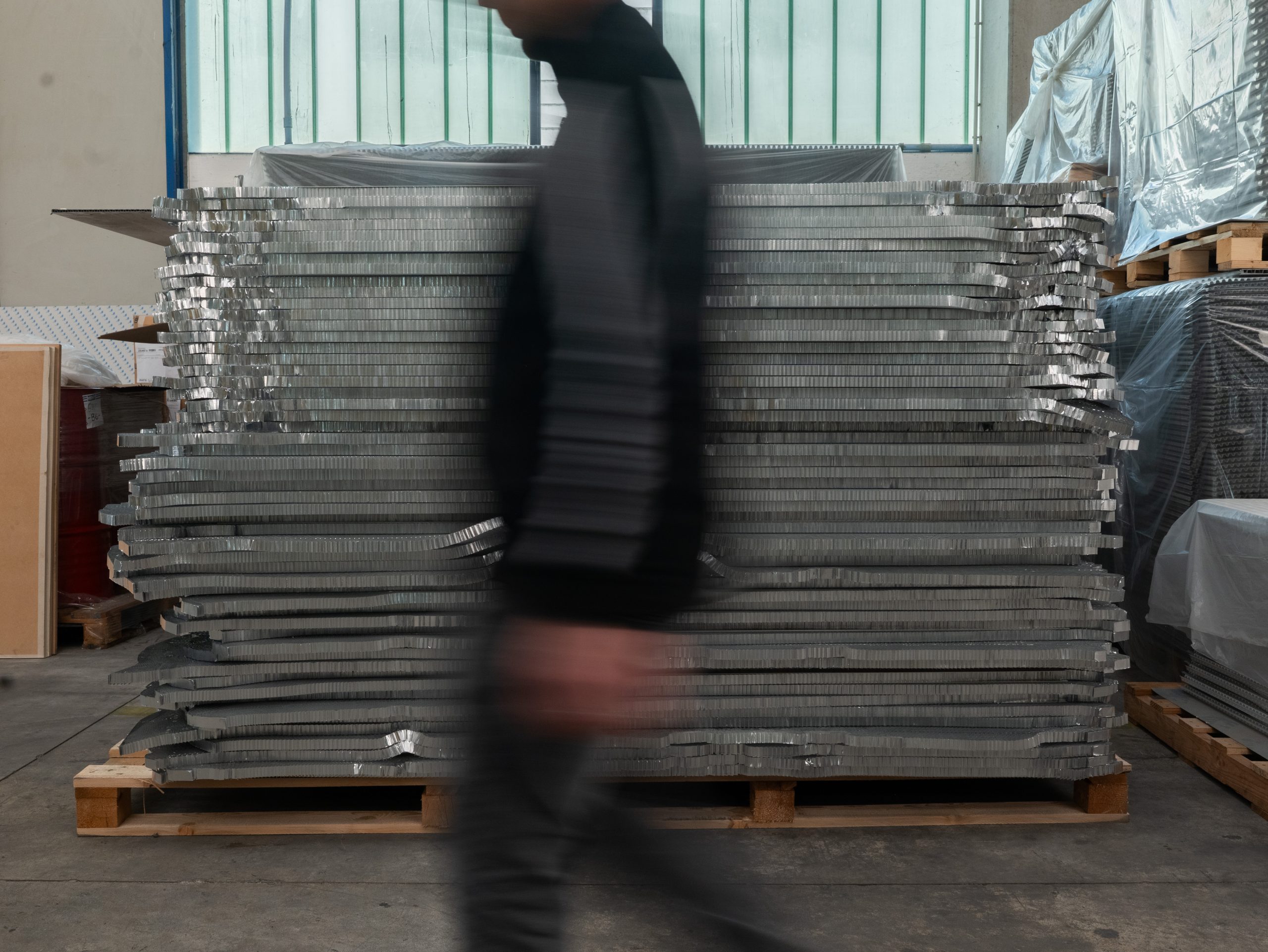

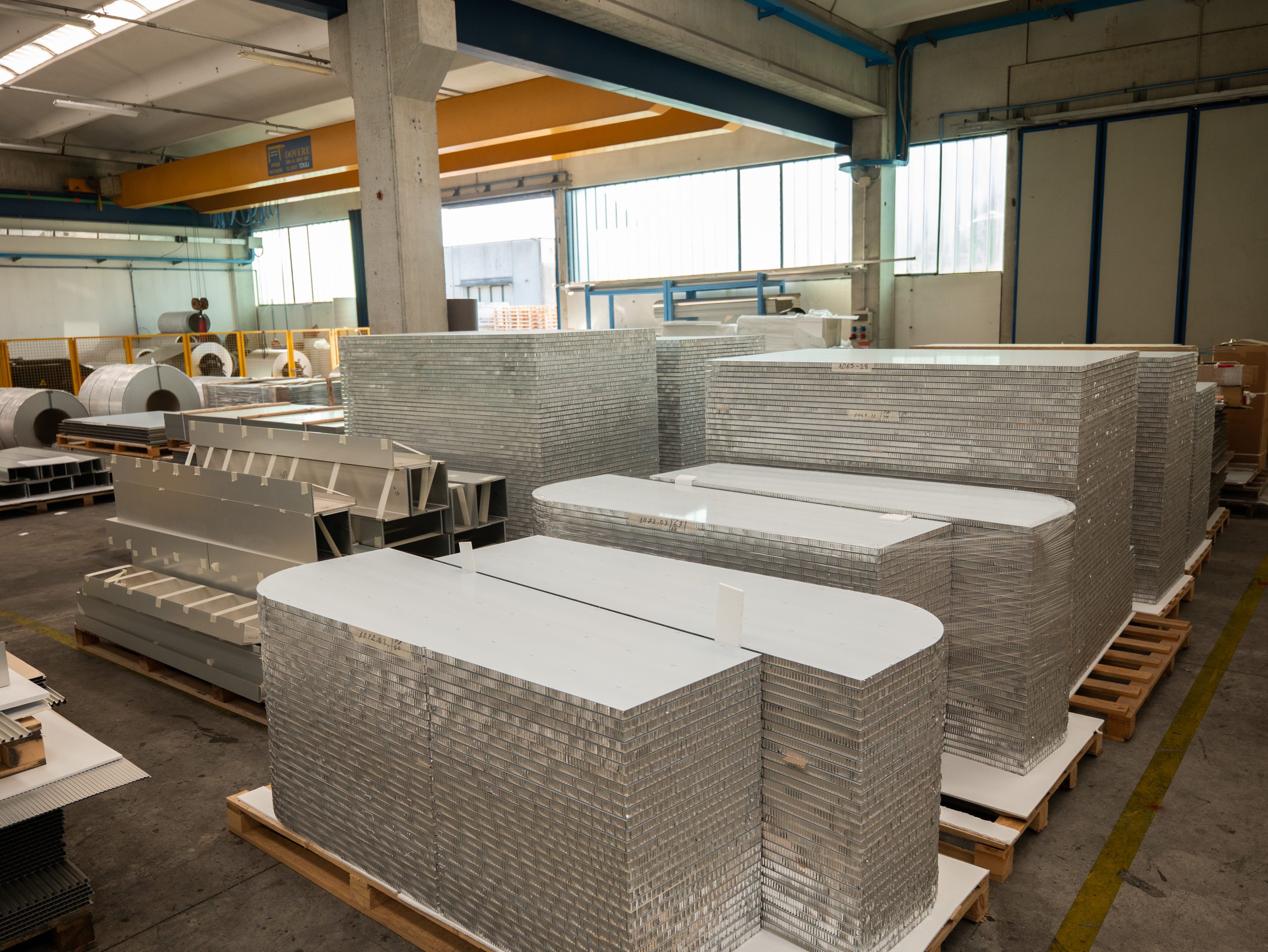

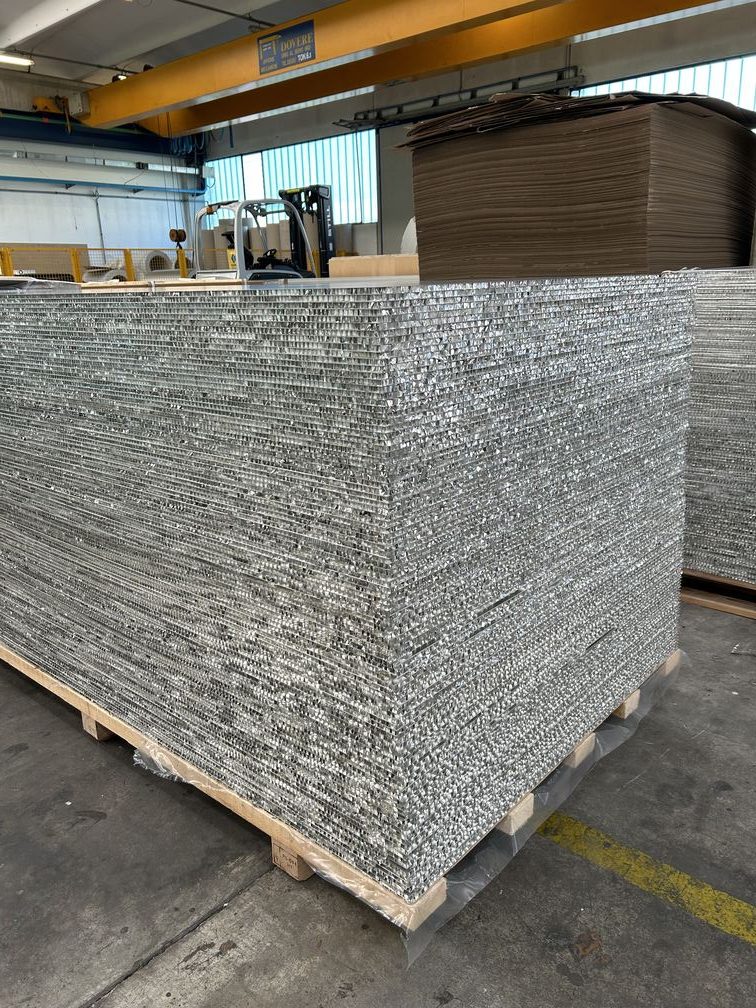

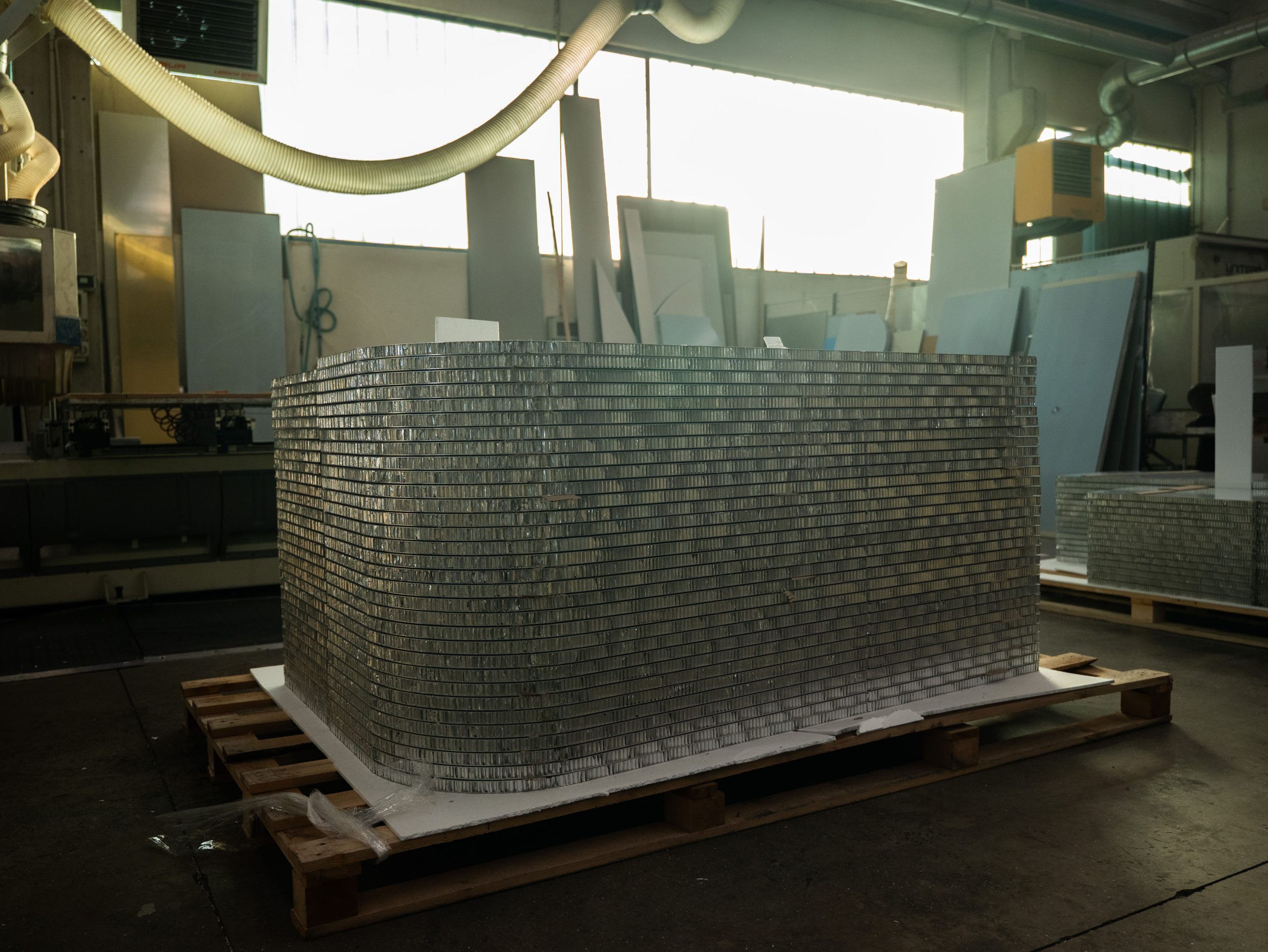

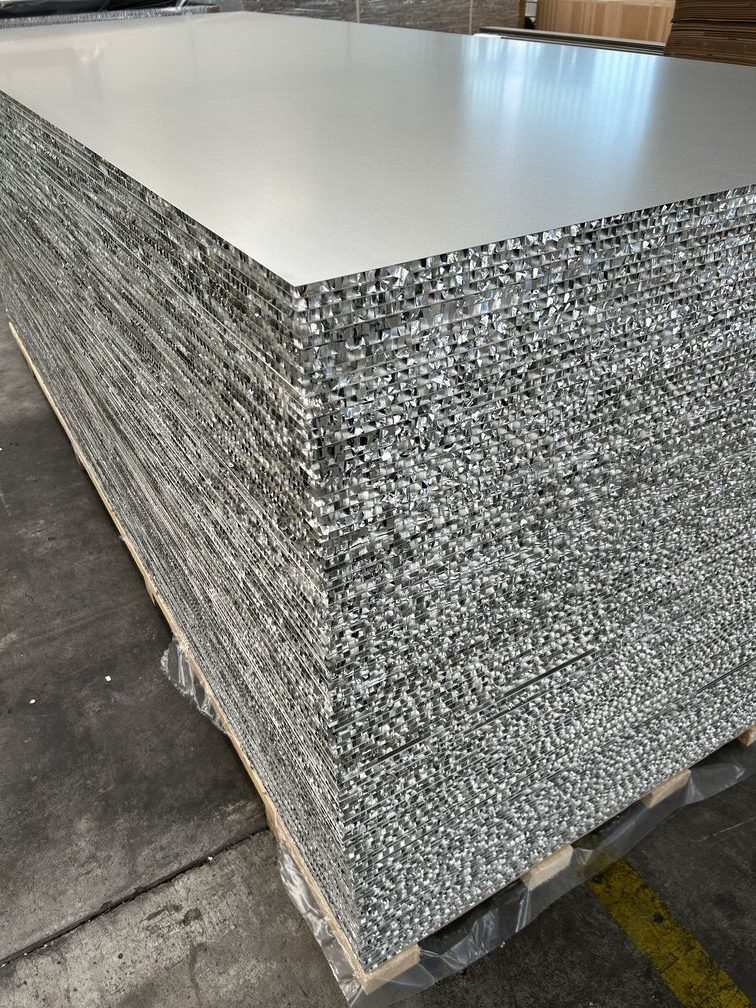

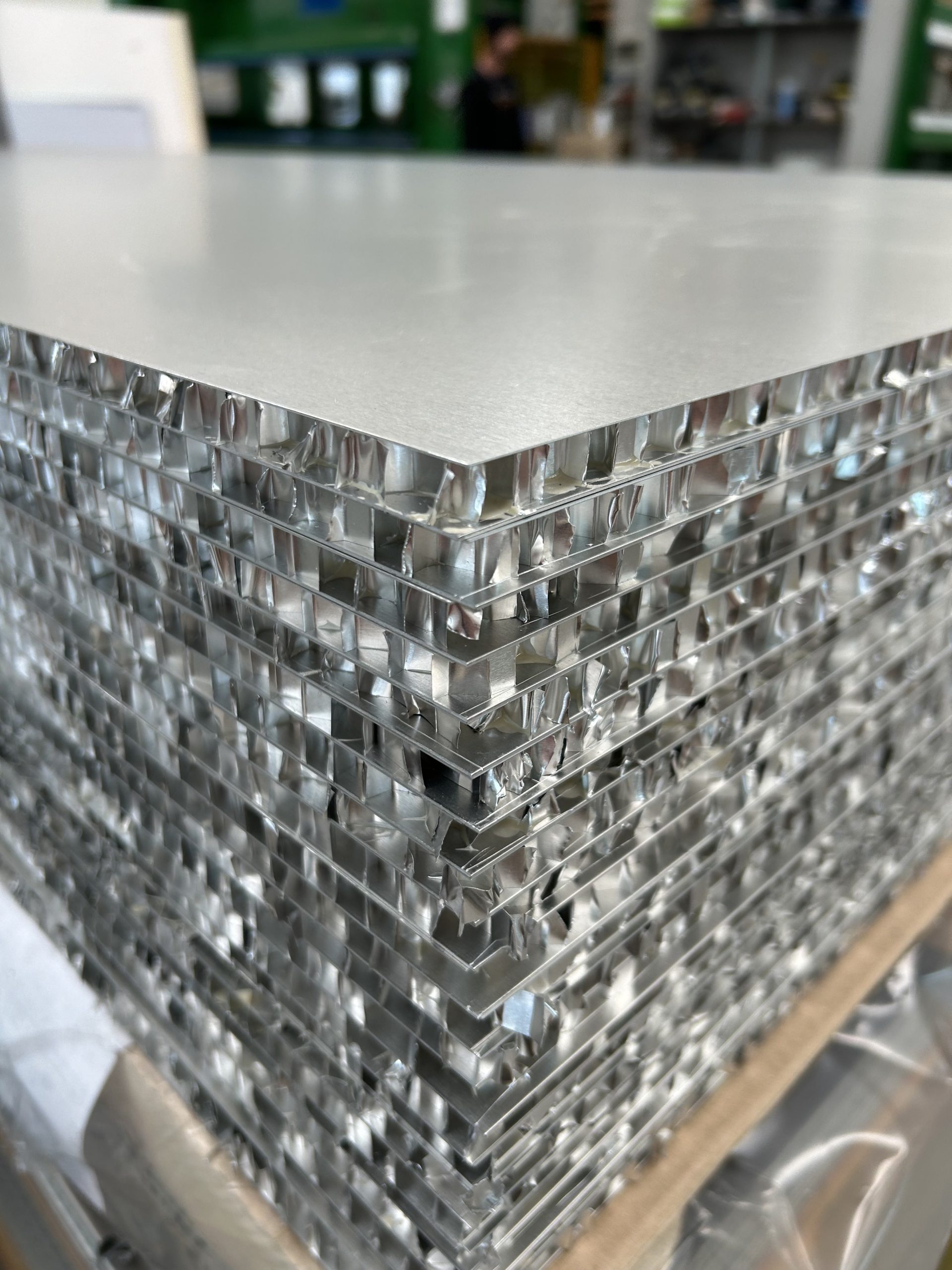

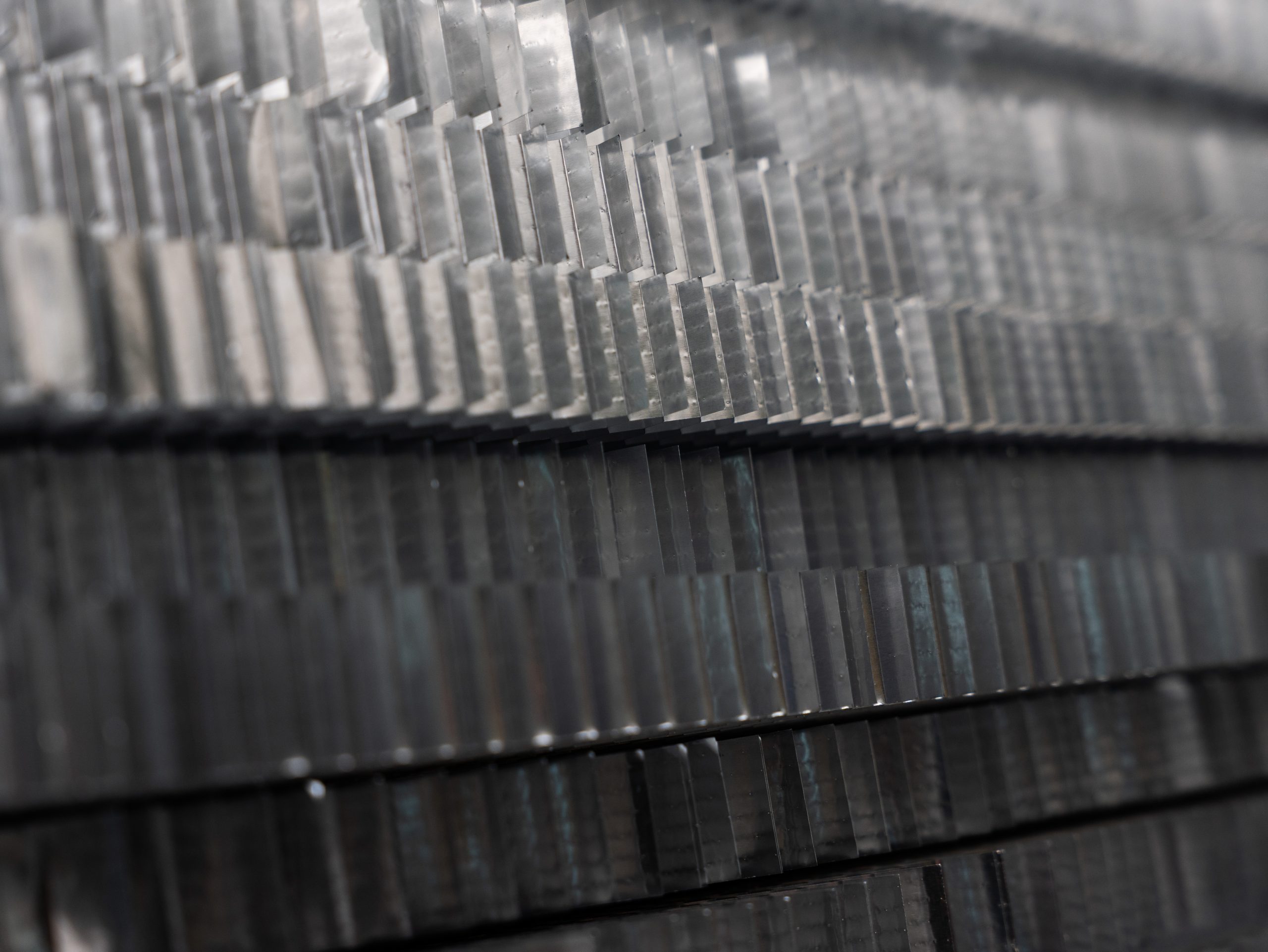

5W srl produces Honeycomb panels with an aluminum honeycomb core, covered with external skins in aluminum or sheet steel; our panels are resistant, flat, certified and incombustible.

Honeycomb panels can be made according to different customer specifications, choosing not only the size and density of the internal core cells, but also the thickness of the honeycomb core and that of the external covering skins.

The honeycomb panels find application in all markets where mechanical and fire resistance are required.

They are perfect for the construction of ventilated walls, ceilings, raised floors, elevator walls, railways and for the naval and nautical sector. All our panels can then be worked, painted or ennobled with different finishes: HPL, laminates, solid surfaces, natural and artificial stones.

TECHNICAL FEATURES

• Standard thicknesses available: from 3 to 40 mm
Honeycomb cell thickness: 29/40 kg/m3

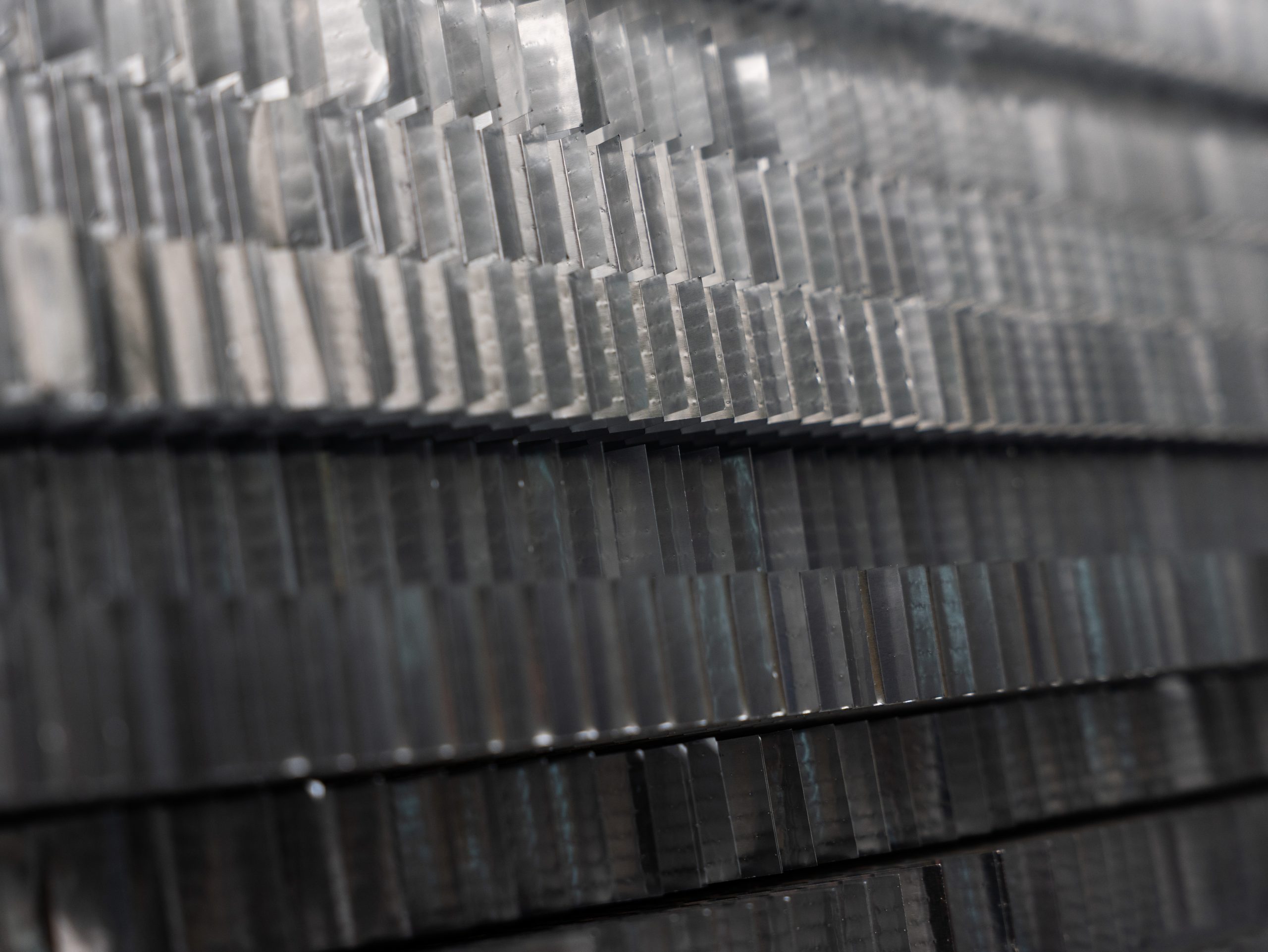

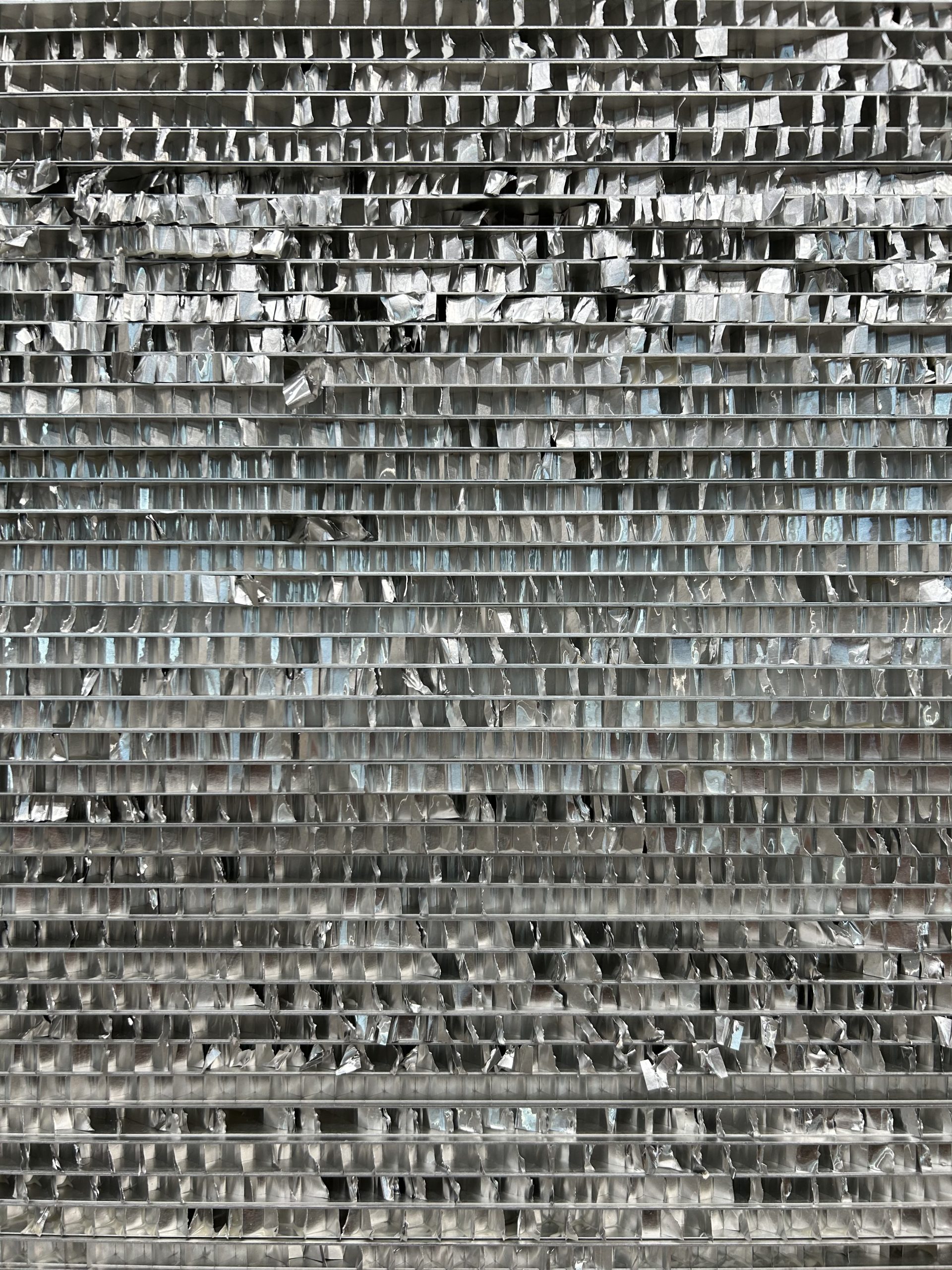

Cell size: 1/4”, 3/8”, 1/2”.
• External skin thickness: from 0.3 mm to 1 mm (standard)
• Standard dimensions: width: 1250 – 1500 mm – Minimum length 2000 mm up to a maximum of 5000 mm
• Non-standard thicknesses and dimensions could be produced on request
• Possibility to choose different finishes
• Panel could be worked using tools similar to those for woodworking



Discover all the APPLICATIONS of panel Wallflex® Honeycomb.
